The following steps are reported to be typical of German methods in the
construction and development of a strongpoint.

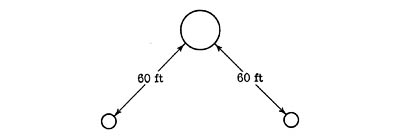

|Antitank gun position (diameter 13 ft, depth 1 1/2 ft).|
|Machine-gun position (diameter 5 ft, depth 5 ft).|
All three positions must be chosen so that each has an all-round field of fire.
Whenever possible, rocky ground which is likely to be exposed to heavy
enemy fire must be avoided. Officers themselves should lay out the positions
with the greatest care.

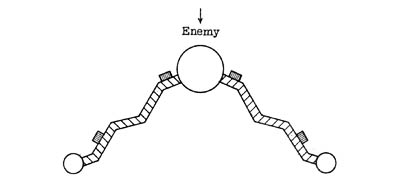

Communication trenches, 5 feet in depth, between the three positions and
dugout will be added.
Later, the trenches will be covered with boards and stones in order to
make them splinter-proof and difficult to recognize from the air.

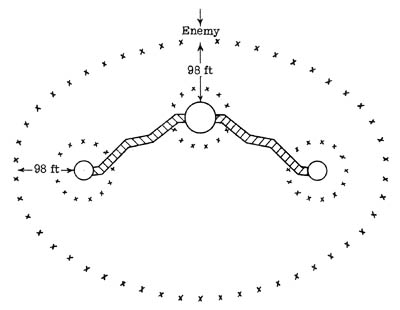

(a) Wiring of the strong point;
(b) Laying of antitank mines in the wire;
(c) Wiring of individual positions (antitank and machine gun);
(d) Covering of communication trenches between the positions.
