"New German Antipersonnel Bomb" from Tactical and Technical Trends

The following intelligence report on a new type of German antipersonnel bomb was originally published in Tactical and Technical Trends, No. 18, Feb. 11, 1943.

[DISCLAIMER: The following text is taken from the U.S. War Department publication Tactical and Technical Trends. As with all wartime intelligence information, data may be incomplete or inaccurate. No attempt has been made to update or correct the text. Any views or opinions expressed do not necessarily represent those of the website.]


NEW GERMAN ANTIPERSONNEL BOMB

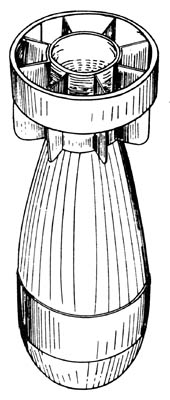

A new type of antipersonnel bomb, weighing from 2 to 3 pounds when filled and complete with fuze, is reported to have been recovered in the Mediterranean area and is shown in the accompanying sketch. It
   [New German Antipersonnel Bomb]
is presumably German, since the bomb casing is very similar to the 50-mm mortar bomb.

The following details are available:

Length of body    4 1/4 in
Maximum diameter of body2 in
Diameter of body at nose1 3/8 in
Diameter of body at tail1 in
Over-all length with fuze6 3/4 in
Length of tail1 1/4 in
Diameter of tail2 in
Number of fins in tail8
Nature of fillingTNT
Bomb and tail paintedyellow

The fuze is a one-piece aluminium fuze screwing into the nose and appears to be of the mechanical impact type.
