Jeep Trailer

Posted on November 27, 2011 by Lone_Sentry_Admin

Two detail views of the WWII jeep cargo trailer from ORD 8 SNL G-529: Spare Parts and Equipment for Trailer, ¼-Ton Payload, 2-Wheel, Cargo, 1942-42 (American Bantam T-3 and Willys MBT), Headquarters, Army Service Forces, July 1945.

Jeep Cargo Trailer

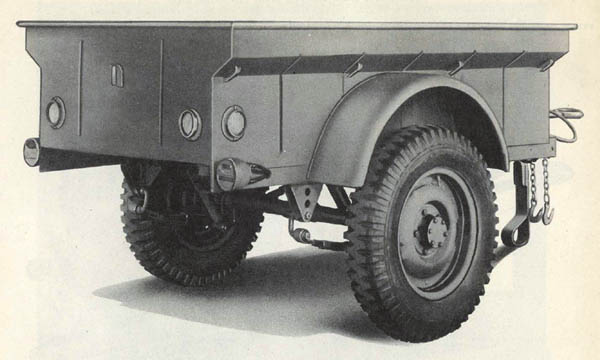

FIGURE A—TRAILER, 1/4-TON PAYLOAD, 2-WHEEL, CARGO, 1942-43, AMERICAN BANTAM T-3 AND WILLYS MBT THREE QUARTER RIGHT REAR VIEW

Jeep Trailer Bantam Willys

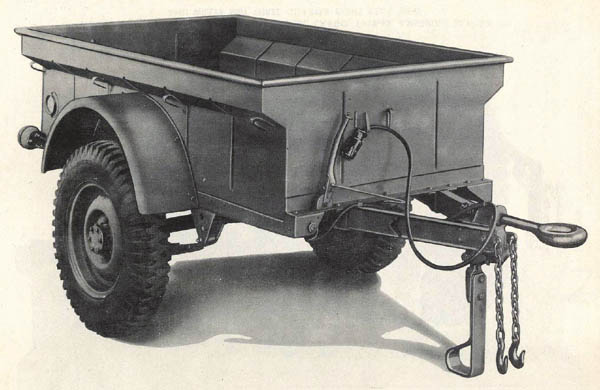

FIGURE B—TRAILER, 1/4-TON PAYLOAD, 2-WHEEL, CARGO, 1942-43, AMERICAN BANTAM T-3 AND WILLYS MBT THREE QUARTER RIGHT FRONT VIEW



This entry was posted in miscellaneous, photos, publications, research and tagged , , , , , . Bookmark the permalink.

3 Responses to Jeep Trailer

  1. LB says:
    November 30, 2011 at 11:52 am

    Nice detail pics.

  2. 4x4 ing says:
    February 23, 2012 at 8:54 pm

    I would love to have one of these to go on my old jeep.

  3. dave says:
    May 5, 2015 at 10:31 am

    just looking at your pics of the bantam t3 WW II trailer , have just aquired one of these BUT its been extended some time ago & had a wooden body put on it , Have removed the body & removed the extended parts & put back to the right size , it has a number without a letter stamp in front , the gusset at the front has rounded corners & it has,nt got a rear cross member , the axle is original as are the springs & still has its combat rims x 3, sadly thats as far as it goes , it has no tub or casting for landing leg & lunnet ring or hand brake assembly , ha ho
