M24 Light Tank Powertrain

Posted on February 5, 2014 by Lone_Sentry_Admin

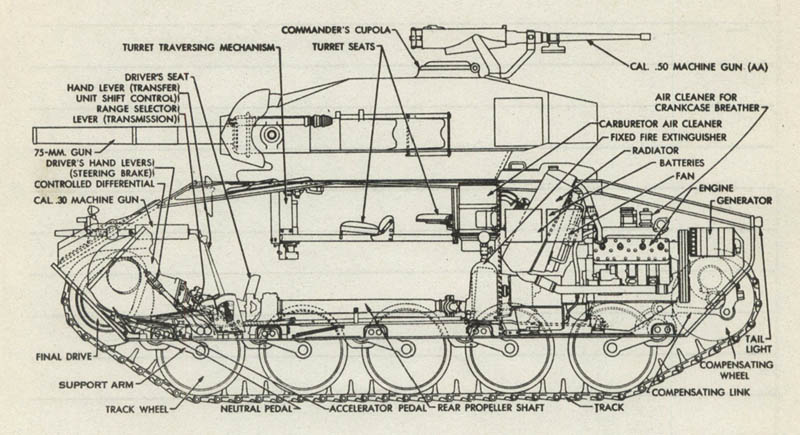

Diagram of the powertrain of the M24 Chaffee light tank from the U.S. Army training booklet Tracked Vehicle Chassis Units, The Armored School, Fort Knox.
