Technical Manual, U.S. War Department, September 1, 1943
[DISCLAIMER: The following text and illustrations are taken from a WWII U.S. War Department
Technical Manual. As with all wartime manuals, the text may be incomplete or inaccurate. No attempt has been made to
update or correct the contents of the original technical manual. Any views or opinions expressed do not necessarily
represent those of the website.]
CARRIAGE, MOTOR, 37-MM GUN, M6 (3/4-TON, 4 x 4)
Technical Manuals: TM 9-750A, TM 9-1808A
Parts List: SNL G-121
Manufacturer: Dodge Bros. Corp. (Div. of Chrysler Corp.) Model WC-55.
Armament: One Gun, 37-mm, M3; four Rifles, cal. .30, M1903, with Launcher, grenade.
Ammunition: 80 rounds 37-mm; 18 grenades.

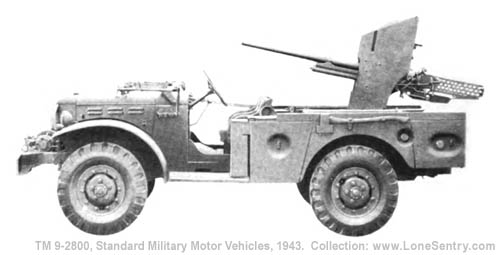

![[Carriage, Motor, 37-mm Gun, M6 (3/4-Ton, 4 x 4) WC-55]](pics/dodge-wc-55-with-37mm-antitank-gun.jpg "Carriage, Motor, 37-mm Gun, M6 (3/4-Ton, 4 x 4)") |
| RA PD 66373 |
Classification: Standard
Purpose: To provide mobility for 37-mm antitank gun.

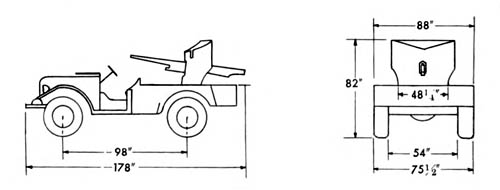

![[Diagram of Carriage, Motor, 37-mm Gun, M6 (3/4-Ton, 4 x 4) Dodge WC-55]](pics/m6-37mm-antitank-gun.jpg "Diagram of Carriage, Motor, 37-mm Gun, M6 (3/4-Ton, 4 x 4) Dodge WC-55") |
| GENERAL DATA | |||
| Crew | 4 | ||
| Weight | Net | (lb) | 5,850 |
| Payload | (lb) | 1,200 | |
| Gross | (lb) | 7,050 | |
| Boxed for export | (lb) | 8,900 | |
| Shipping dimensions | (cu ft) 708, boxed 605 | (sq ft) 102 | |
| Tires—Combat | Ply 8 | Size 9.00 x 16 | |
| Tread, center to center (in.) | (in.) | 64 1/2 | |
| Track width | (in.) | 12 1/4 | |
| Ground clearance | (in.) | 10 5/8 | |
| Ground pressure, tires | (lbs per sq in.) | 40 | |
| Electrical system | (volts) | 6 | |
| Capacities | Fuel, 70 octane gasoline | (gal) | 30 |
| Cooling system | (qt) | 17 | |
| Crankcase (refill) | (qt) | 5 | |
| Brakes | Hydraulic | ||
| Communication | Radio | ||
| PERFORMANCE | |||
| Maximum gradability | (percent) | 60 | |
| Turning radius | (ft) | 22 | |
| Fording depth | (in.) | 35 | |
| Maximum vertical obstacle vehicle will climb | (in.) | 12 | |
| Angle of approach | (deg) | 36 1/2 | |
| Angle of departure | (deg) | 31 | |
| Fuel consumption, average conditions | (miles per gal) | 8.0 | |
| Cruising range, average conditions | (miles) | 240 | |
| Maximum allowable speed | (mph) | 54 | |
| ENGINE | |||
| Manufacturer | Dodge | Model T-214 | |
| Type | In-line, 4 cycle | Number of cylinders | 6 |
| Displacement | (cu in.) | 230.2 | |
| Governed speed | (rpm) | 3,200 | |
| Brake horsepower | 94 | ||
| Ignition type | Battery | ||
| ADDITIONAL DATA | |||
| Winch capacity | (lb) | 5,000 | |
| Basic chassis | Weapons carrier, 3/4-ton, 4 x 4 | ||
