TM 9-2800: Standard Military Motor Vehicles

Technical Manual, U.S. War Department, September 1, 1943

[DISCLAIMER: The following text and illustrations are taken from a WWII U.S. War Department Technical Manual. As with all wartime manuals, the text may be incomplete or inaccurate. No attempt has been made to update or correct the contents of the original technical manual. Any views or opinions expressed do not necessarily represent those of the website.]

CARRIAGE, MOTOR, MULTIPLE GUN, M16

Technical Manuals: TM 9-710A, TM 9-1710, TM 9-1710C, TM 9-1711

Parts List: SNL G-102

Manufacturer: White Motor Co.

Armament: Four Guns, machine, cal. .50, HB, M2, turret type; one Gun, submachine, cal. .45, M1928A1; one Rifle, cal. .30, M1903, w/Launcher, grenade; three Carbines, cal. .30, M1.

Ammunition: 5,000 rounds, cal. .50, in belts; 480 rounds, cal. .45, in clips; 26 grenades.

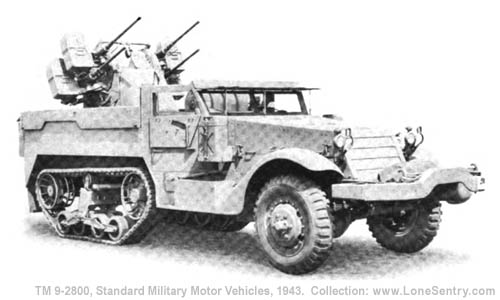

[Carriage, Motor, Multiple Gun, M16]
RA PD 308921

Classification: Standard

Purpose: To provide mobility for machine guns.

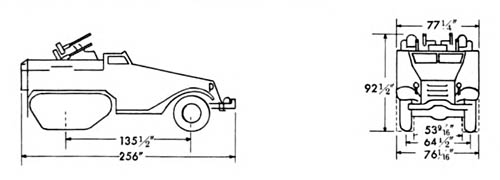

[U.S. WW2 Half-Track, Carriage, Motor, Multiple Gun, M16 Dimensions Diagram]

GENERAL DATA

Crew 5

Weight Gross (lb) 19,800

Boxed for export (lb) 21,532

Shipping dimensions (cu ft) boxed 1188 (sq ft)

Tires—Combat Ply 12 Size 8.25 x 20

Tread, center to center (in.) Front—64 1/2 Rear—63 13/16

Track width (in.) 12 1/4

Ground clearance (in.) 17 1/8

Ground pressure, tires (lbs per sq in.) 30

Electrical system (volts) 12

Capacities Fuel, 80 octane gasoline (gal) 60

Cooling system (qt) 26

Crankcase (refill) (qt) 8

Brakes Hydraulic (Hydrovac)

Communication Radio

PERFORMANCE

Maximum gradability (percent) 60

Turning radius (ft) 30

Maximum vertical obstacle vehicle will climb (in.) 12

Fording depth (in.) 32

Angle of approach (deg) 33

Angle of departure (deg) 45

Fuel consumption, average conditions (miles per gal) 3.3

Cruising range, average conditions (miles) 200

Maximum allowable speed (mph) 45

1st 2nd 3rd 4th

Cruising speed 9 17 26 45

ENGINE

Manufacturer White Model 160AX

Type In-line, 4 cycle Number of cylinders 6

Displacement (cu in.) 386

Maximum engine speed (not governed) (rpm) 3200

Brake horsepower 148

Ignition type Battery

ADDITIONAL DATA

Winch capacity (lb) 10,000

Basic chassis Carrier, personnel, half-track, M3
