JAPANESE 70-MM HOWITZER MODEL 92

Reports on this weapon indicate that it is generally used as a mortar against personnel.

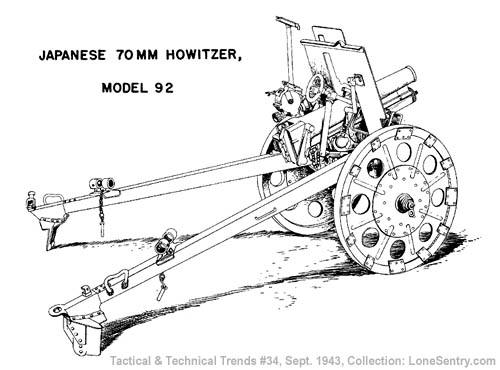

[WW2 Japanese 70-mm Howitzer Model 92]

The howitzer is used with Japanese infantry battalions; ordinarily horse-drawn but it can be manhandled easily by the 10-man section; it can be placed in position by two men; three men can handle it on a good road. The piece is mounted on a cradle which houses the hydro-spring recoil mechanism. It has a steel split-trail carriage mounted on steel disk wheels. The general characteristics follow (see accompanying sketch).

Caliber      70 mm (2.76 in)
Length
     Overall, with tails folded 87 inches
Tube 2 feet, 6 inches
Weight (complete) 468 lbs
Rifling 24 lands and grooves (r/h twist)
Maximum range 3,000 yards
Effective range 1,500 yards
Muzzle velocity 650 f/s
Ammunition HE, smoke and shrapnel
Weight of shell (HE) 8.36 lbs
Rate of fire 10 rpm
Tube Monobloc
Breech block Interrupted thread type
Firing mechanism Continuous pull
Recoil Hydro spring
Elevation 50°
Depression -10°
Traverse 45° each way
Sight Panoramic
Shield 1/8 in armor
