WWII Photo Feature 37: 90-mm vs. Panther
This section features documents and photographs from our personal collection of WWII historical material. As time permits, new feature pages will be added with additional photographs and documents.

In January 1945, the U.S. Ordnance Department published a handbook on the 90-mm M3 Gun which included the following illustrations of the effectiveness of the 90-mm Hyper-Velocity Armor-Piercing Shot T30E16 and 90-mm Armor Piercing Shot T33 against the German Panther tank.

[Complete penetration of gun mantlet and turret front plate has been obtained against the German Pz Kpfw V Panther Tank by Shot, H.V., A.P., T30E16 at a range of 800 yards.]
Complete penetration of gun mantlet and turret front plate has been obtained against the German Pz Kpfw V "Panther" Tank by Shot, H.V., A.P., T30E16 at a range of 800 yards.

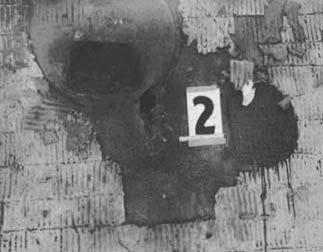

[Complete penetration at the juncture of machine gun ball mount with the glacis plate of German Pz Kpfw V Panther Tank by Shot, H.V., A.P., T30E16 at a range of 800 yards.]
Complete penetration at the juncture of machine gun ball mount with the glacis plate of German Pz Kpfw V "Panther" Tank by Shot, H.V., A.P., T30E16 at a range of 800 yards.

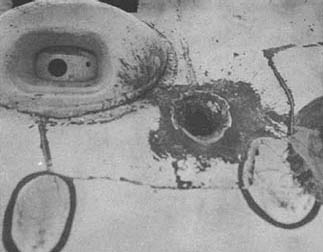

[Complete penetration of lower nose plate of German Pz Kpfw V Panther Tank. Shot, H.V., A.P., T30E16 fired at a range of 600 yards.]
Complete penetration of lower nose plate of German Pz Kpfw V "Panther" Tank. Shot, H.V., A.P., T30E16 fired at a range of 600 yards.

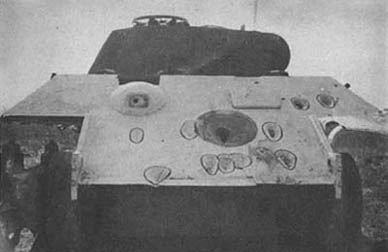

[German Pz Kpfw V (Panther) Tank, before firing.]
German Pz Kpfw V (Panther) Tank, before firing.

[Complete penetration of glacis plate of German Pz Kpfw V (Panther) Tank by Shot, A.P., 90mm, T33 at a range of 1000 yards.]
Complete penetration of glacis plate of German Pz Kpfw V (Panther) Tank by Shot, A.P., 90mm, T33 at a range of 1000 yards.
[German Pz Kpfw V (Panther) Tank; Complete penetration at 500 yards with Shot, A.P., 90mm, T33.]
German Pz Kpfw V (Panther) Tank; Complete penetration at 500 yards with Shot, A.P., 90mm, T33.

Source: Armor-Piercing Ammunition for Gun, 90-mm, M3, Office of the Chief of Ordnance, Washington, D.C., 1945.
