TM-E 30-480: Handbook on Japanese Military Forces
Technical Manual, U.S. War Department, October 1, 1944
[DISCLAIMER: The following text and illustrations are taken from a WWII U.S. War Department Technical Manual. As with all wartime manuals, the text may be incomplete or inaccurate. No attempt has been made to update or correct the contents of the original technical manual. Any views or opinions expressed do not necessarily represent those of the website.]


Chapter XII: Conventional Signs and Abbreviations

Section III: Military Signs

NOTE. The arrangement of the Army signs follows that adopted by the Japanese, and is outlined below. The arrangement of the Navy and Special Naval Landing Force signs is arbitrary.

      Paragraph
Army Signs1
        Common to all arms.
        Infantry.
        Cavalry.
        Artillery.
        Engineers.
        Air, antiaircraft, and meteorological.
        Armored Forces.
        Field works.
        Railway.
        Shipping.
        Signal.
        Transport, supply, and medical services.
        Line of communications.
        Siege and fortress defense.
Navy Signs2
Special Naval Landings Force Signs3

1. ARMY SIGNS.

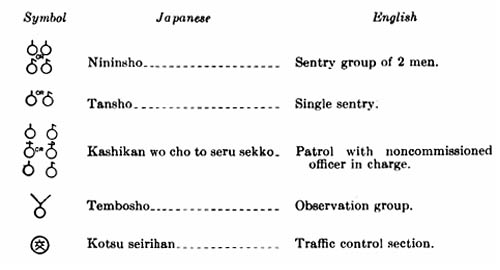

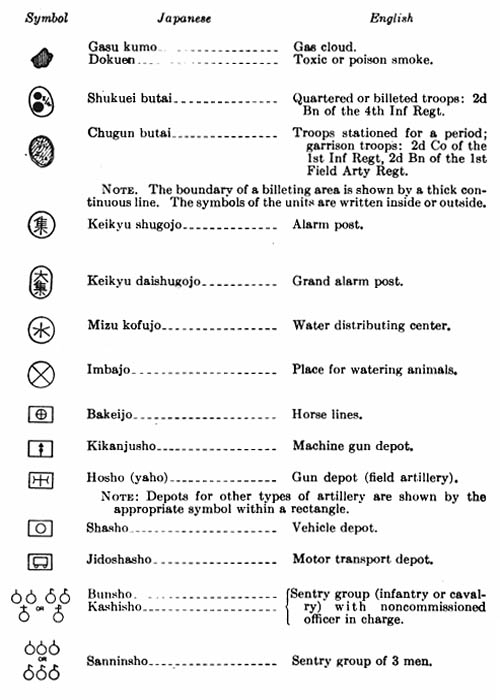

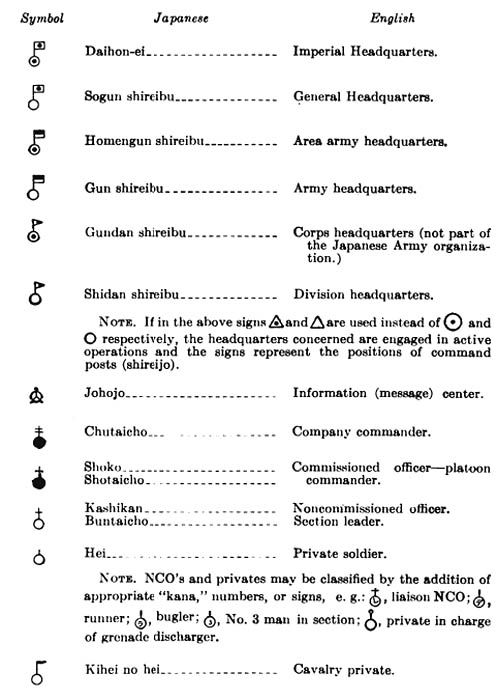

a. Common to all arms.

[Army Signs: Common to all arms.]

[Army Signs: Common to all arms.]

[Army Signs: Common to all arms.]

[Army Signs: Common to all arms.]

[Army Signs: Common to all arms.]

b. Infantry.

[Army Signs: Infantry.]

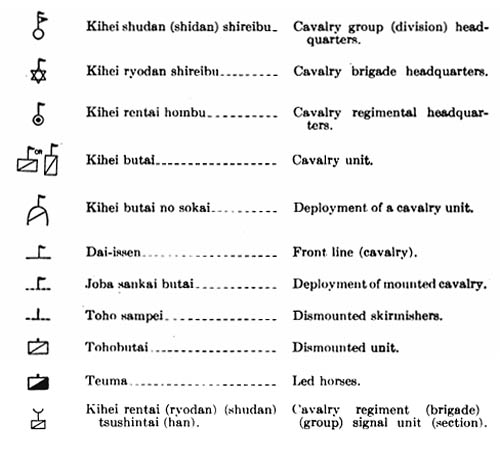

c. Cavalry.

[Army Signs: Cavalry.]

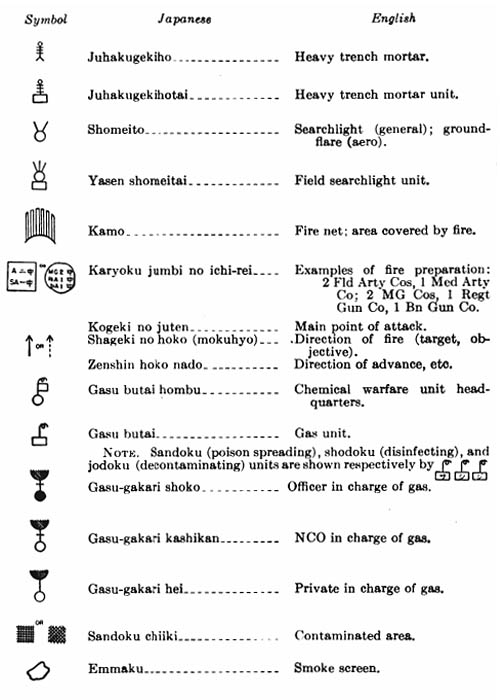

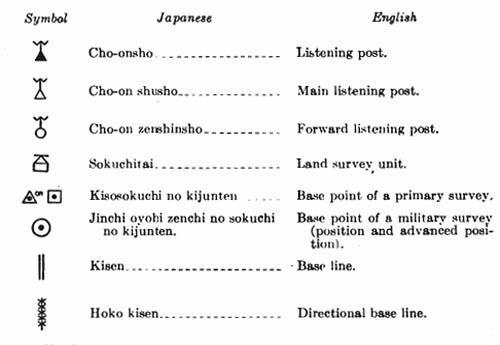

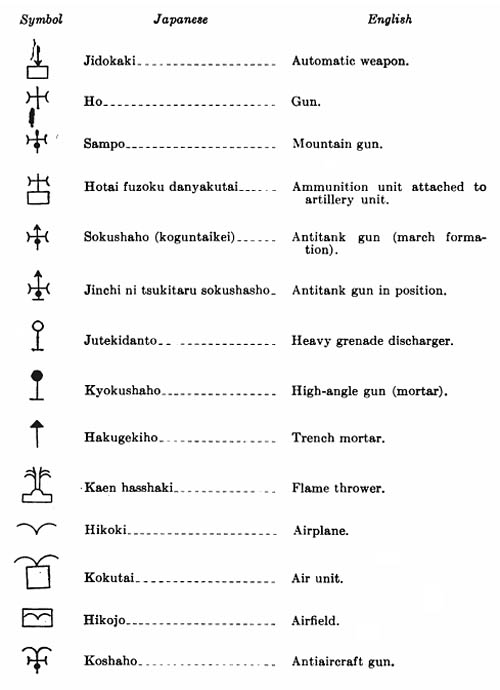

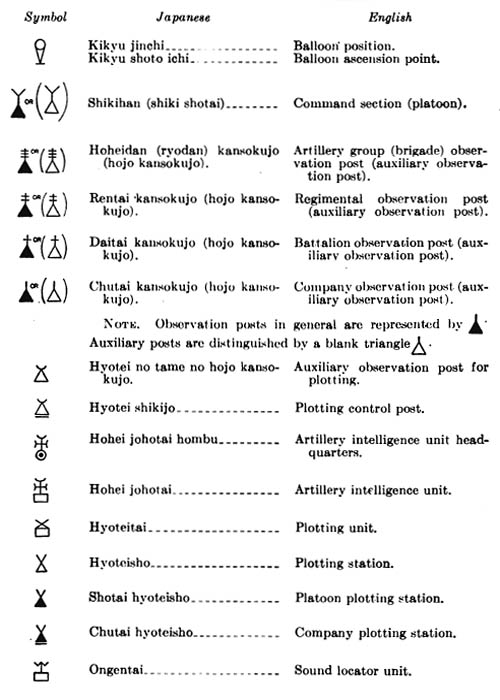

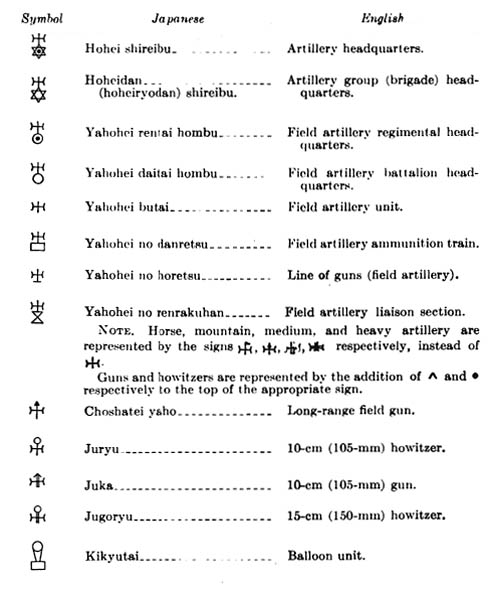

d. Artillery.

[Army Signs: Artillery.]

[Army Signs: Artillery.]

[Army Signs: Artillery.]

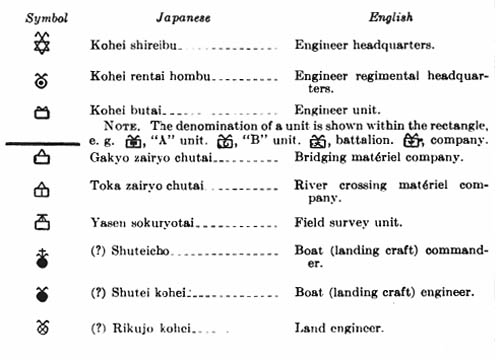

e. Engineers.

[Army Signs: Engineers.]

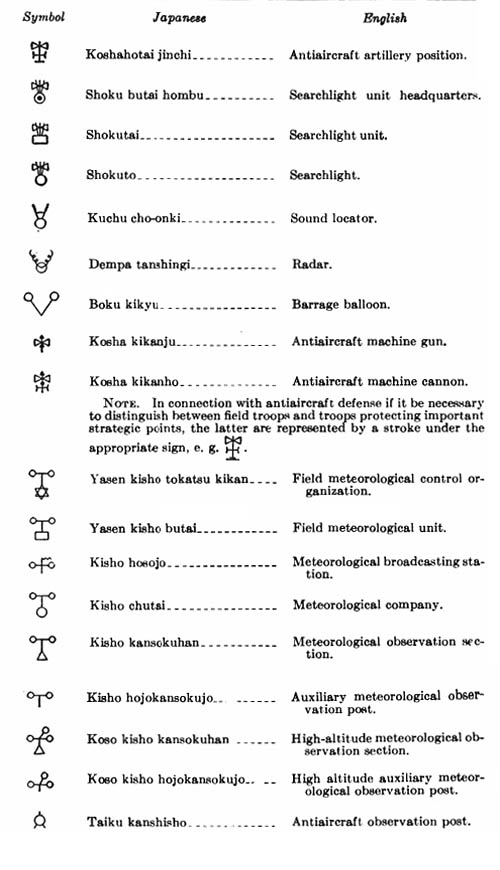

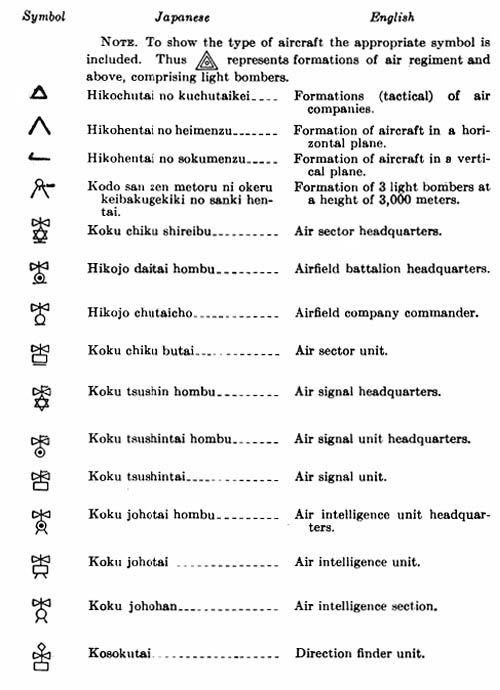

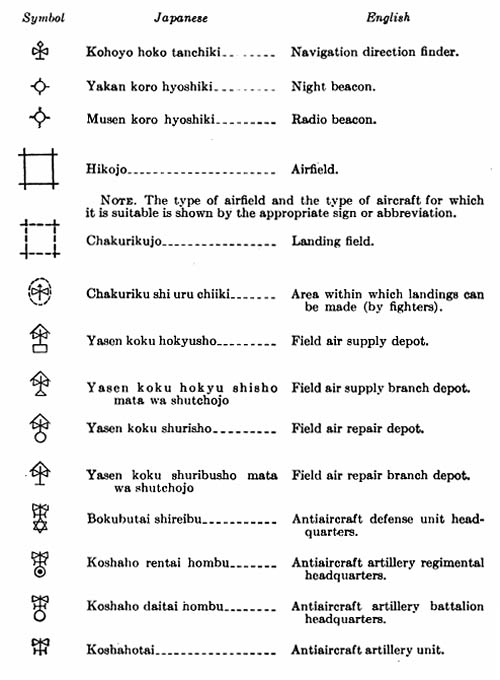

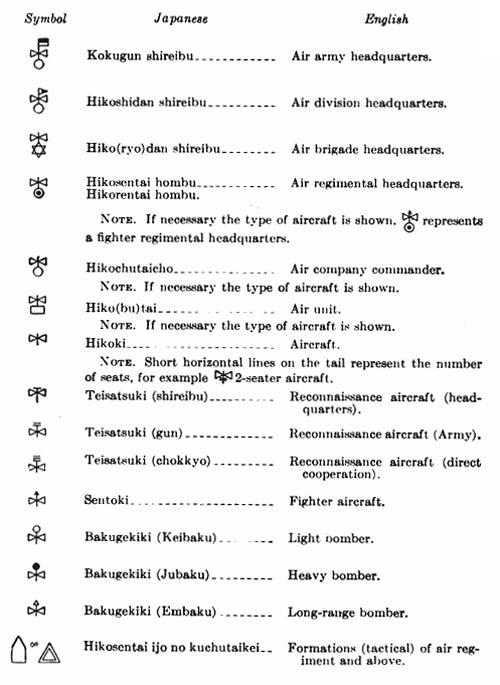

f. Air, antiaircraft, and meteorological.

[Army Signs: Air, antiaircraft, and meteorological.]

[Army Signs: Air, antiaircraft, and meteorological.]

[Army Signs: Air, antiaircraft, and meteorological.]

[Army Signs: Air, antiaircraft, and meteorological.]

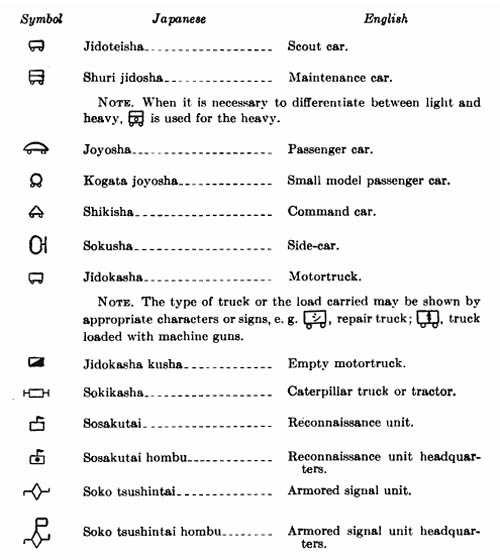

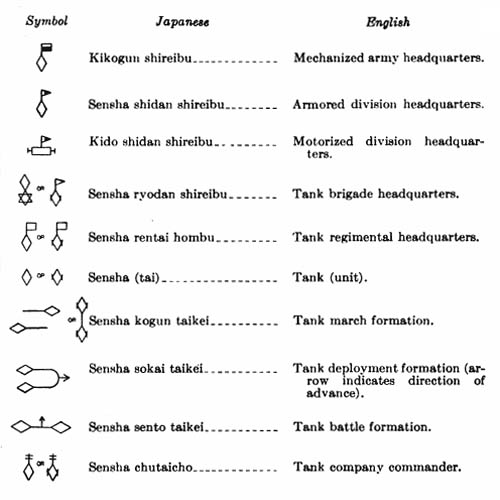

g. Armored Forces.

[Army Signs: Armored Forces.]

[Army Signs: Armored Forces.]

[Army Signs: Armored Forces.]

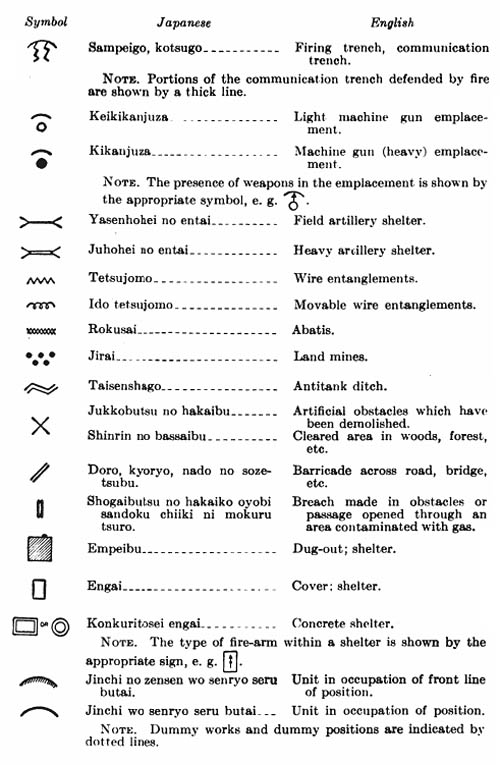

h. Field works.

[Army Signs: Field works.]

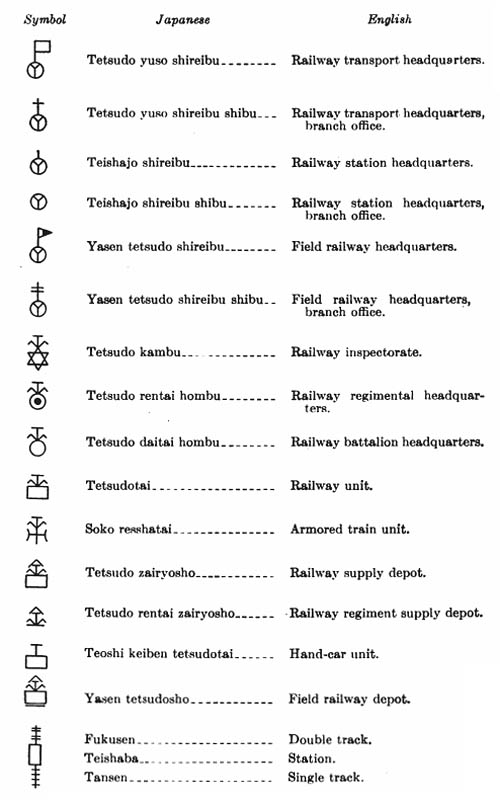

i. Railway.

[Army Signs: Railway.]

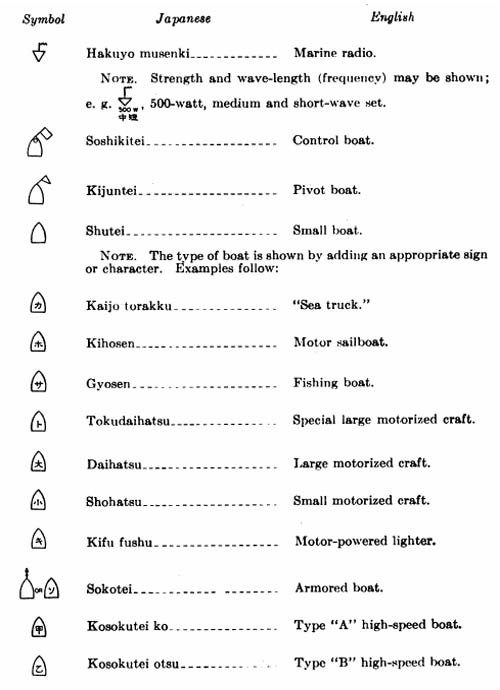

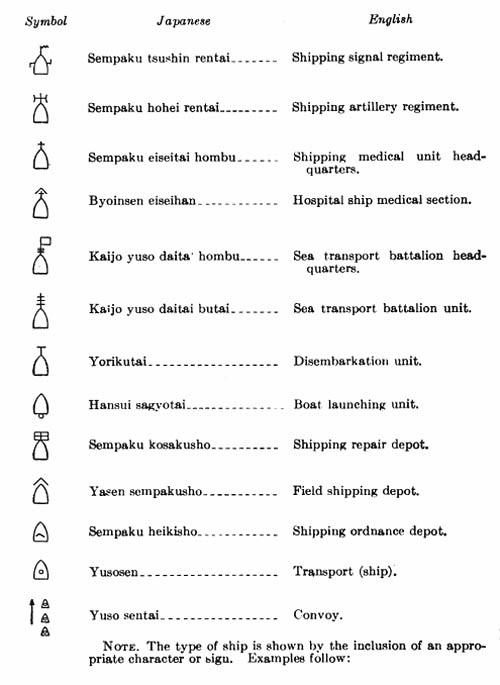

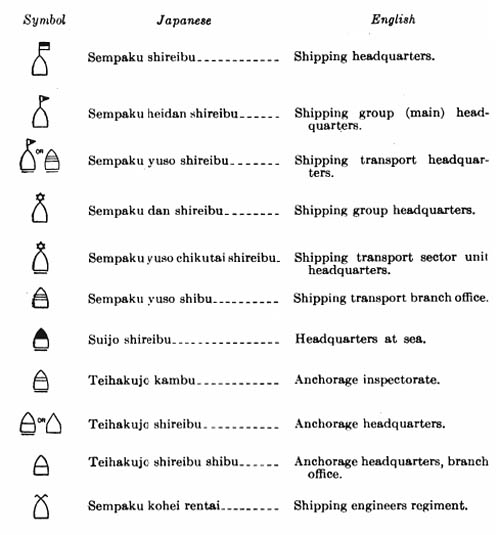

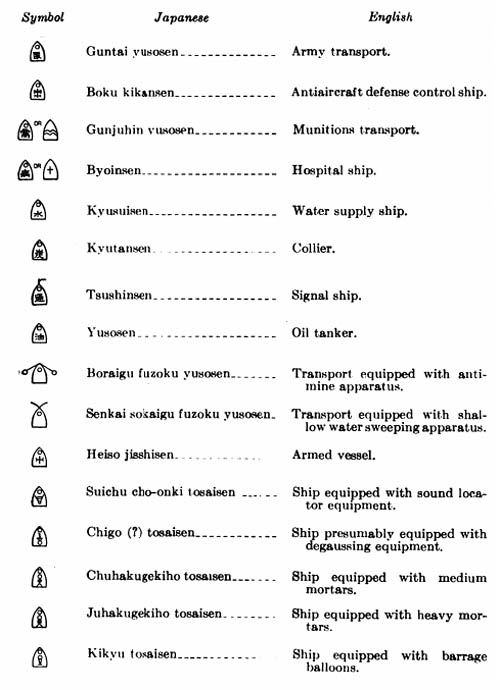

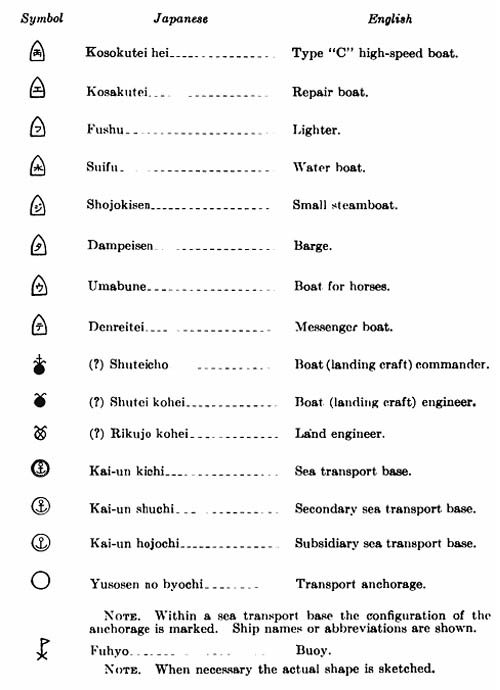

j. Shipping.

[Army Signs: Shipping.]

[Army Signs: Shipping.]

[Army Signs: Shipping.]

[Army Signs: Shipping.]

[Army Signs: Shipping.]

[Army Signs: Shipping.]

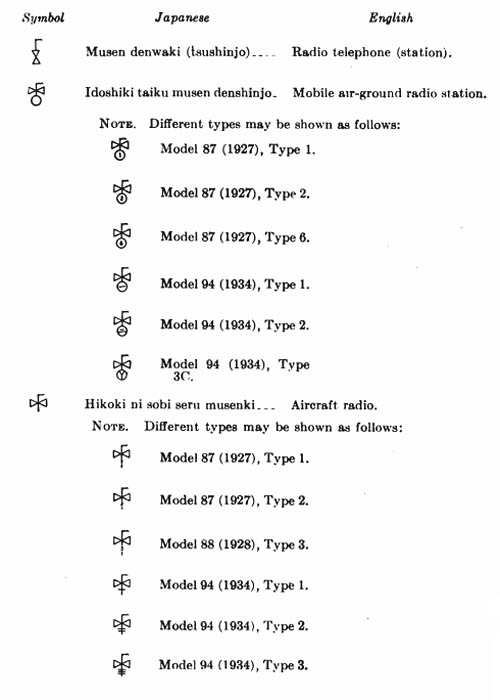

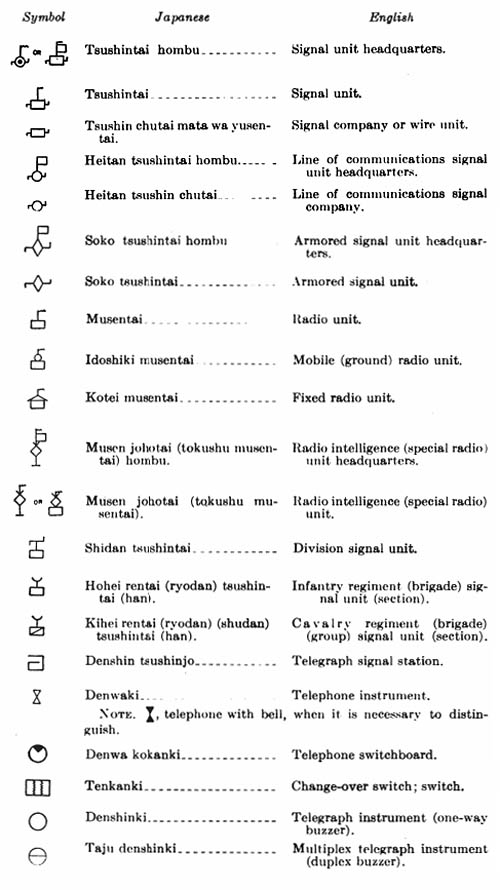

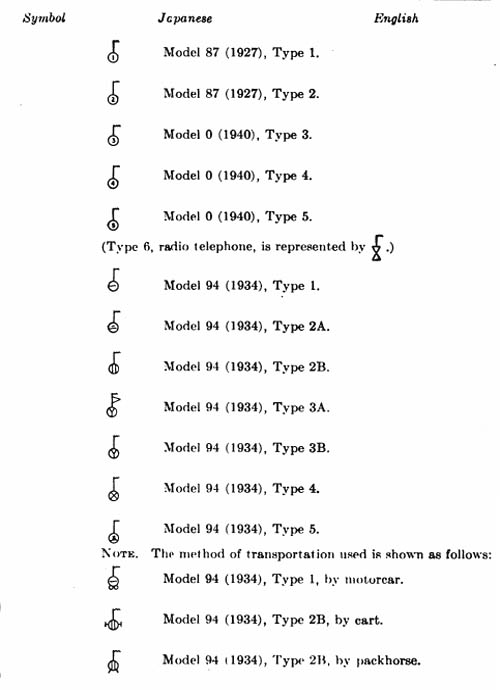

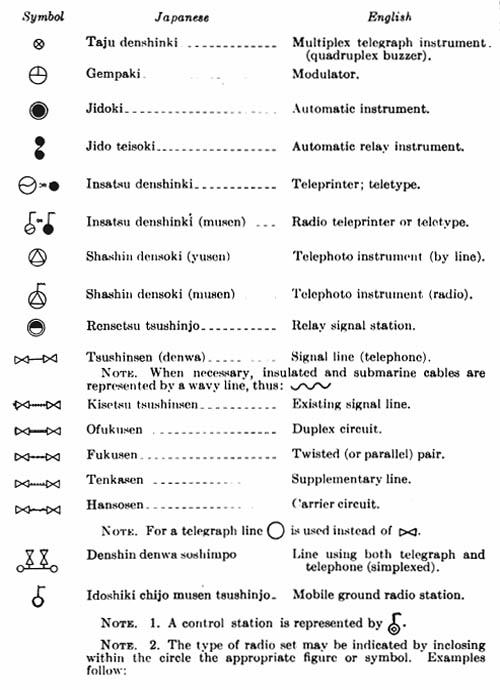

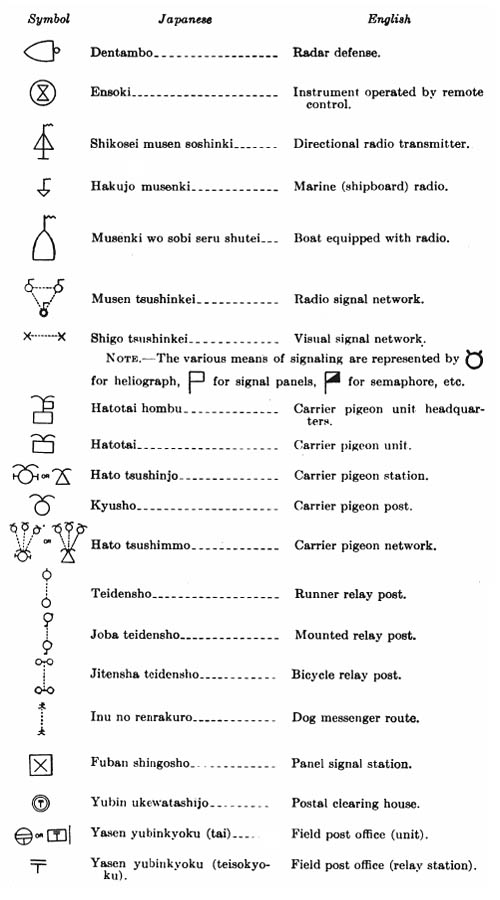

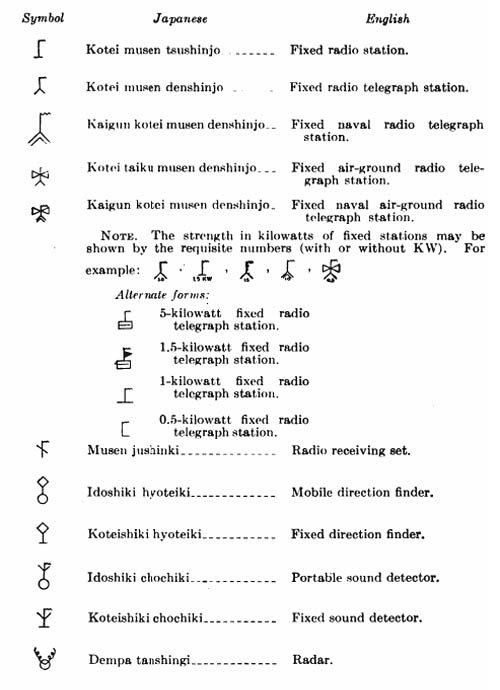

k. Signal.

[Army Signs: Signal.]

[Army Signs: Signal.]

[Army Signs: Signal.]

[Army Signs: Signal.]

[Army Signs: Signal.]

[Army Signs: Signal.]

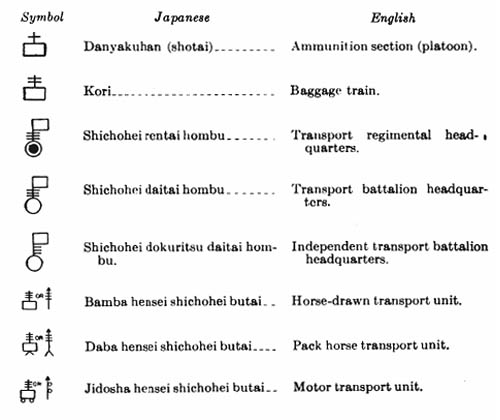

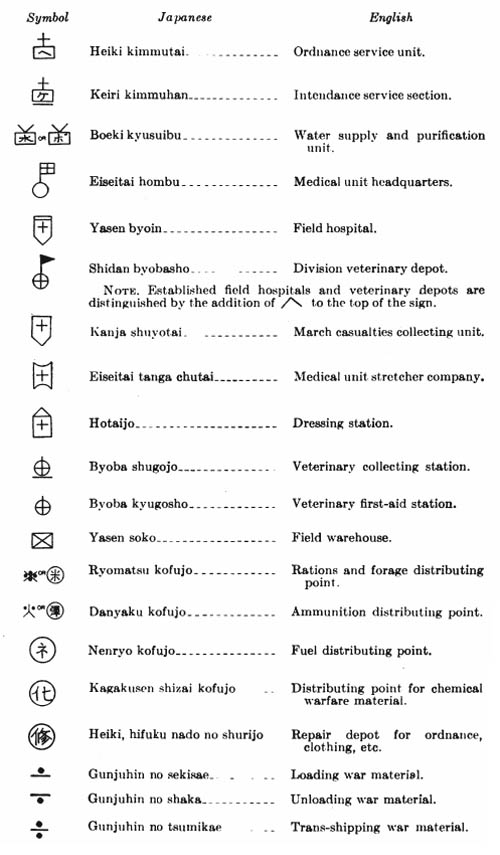

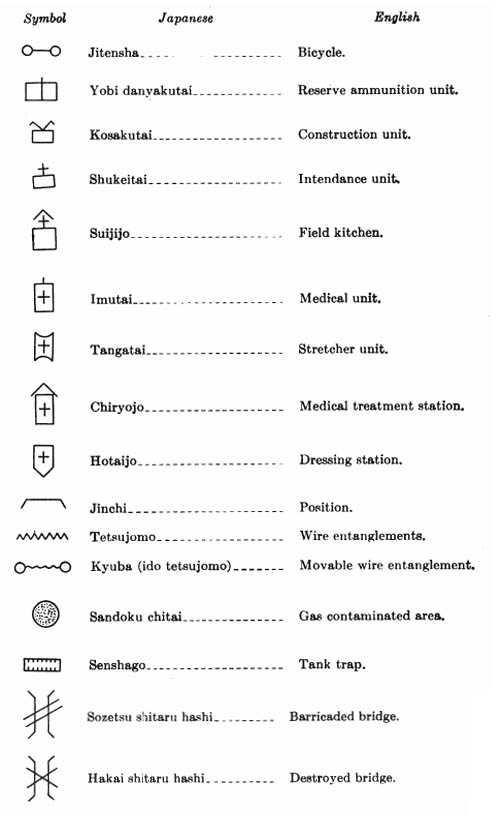

l. Transport, Supply, and Medical Services.

[Army Signs: Transport, Supply, and Medical Services.]

[Army Signs: Transport, Supply, and Medical Services.]

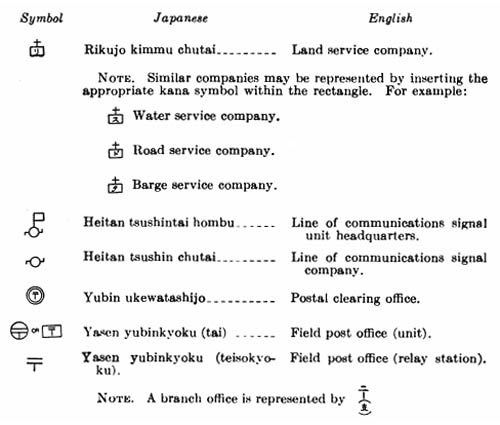

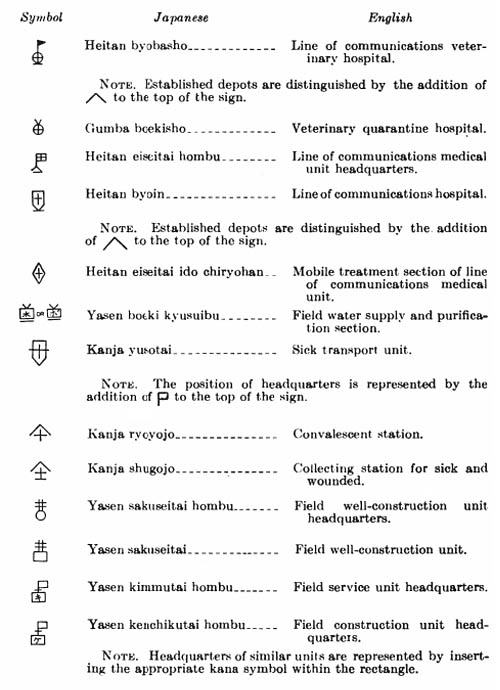

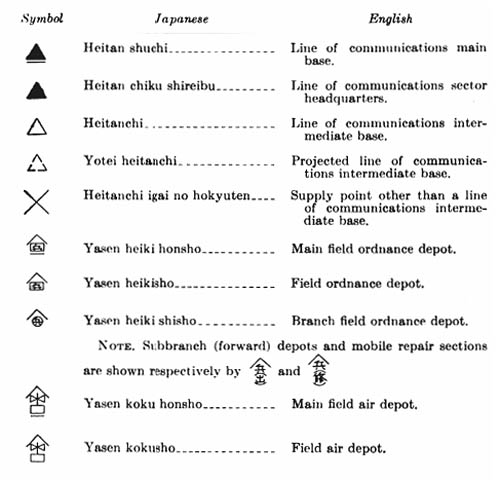

m. Line of Communications.

[Army Signs: Line of Communications.]

[Army Signs: Line of Communications.]

[Army Signs: Line of Communications.]

[Army Signs: Line of Communications.]

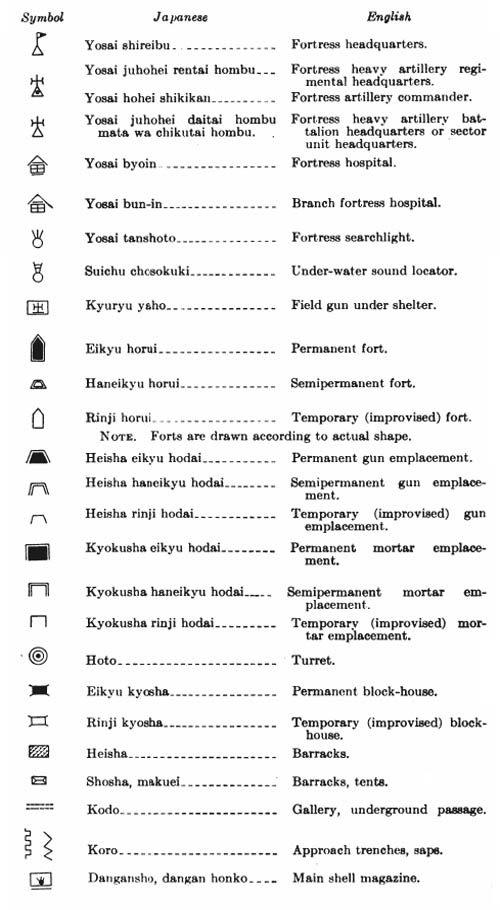

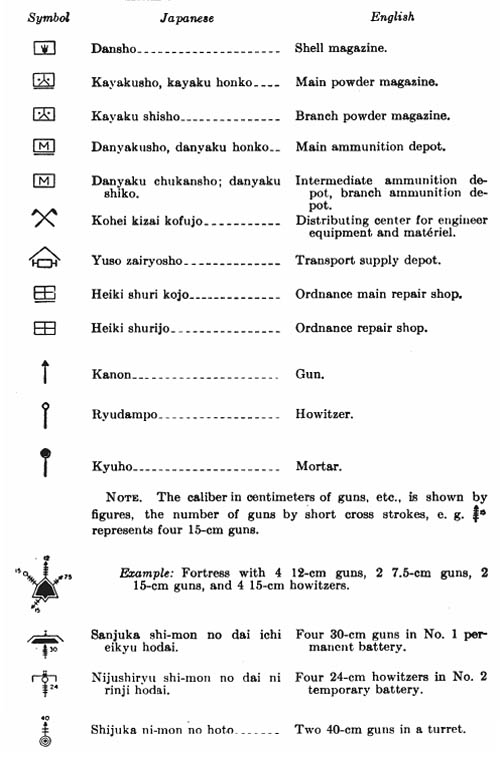

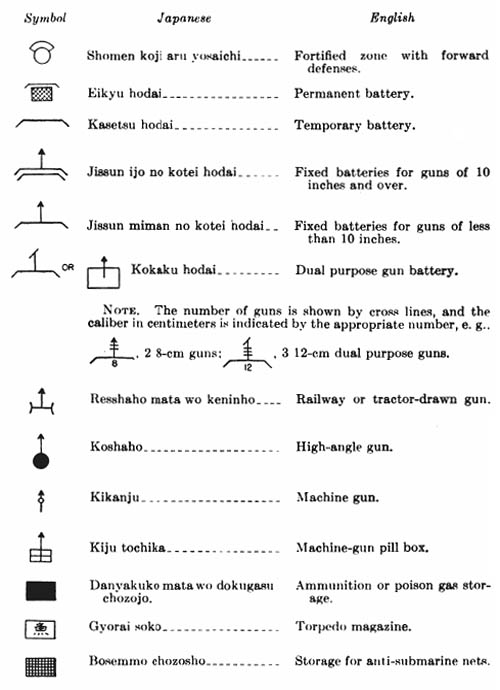

n. Siege and fortress defense.

[Army Signs: Siege and fortress defense.]

[Army Signs: Siege and fortress defense.]

2. NAVY SIGNS.

NOTE. For Army air and shipping signs see paragraph 1 of this section. Navy hydrographic signs are listed in section I, paragraph 2, of this chapter.

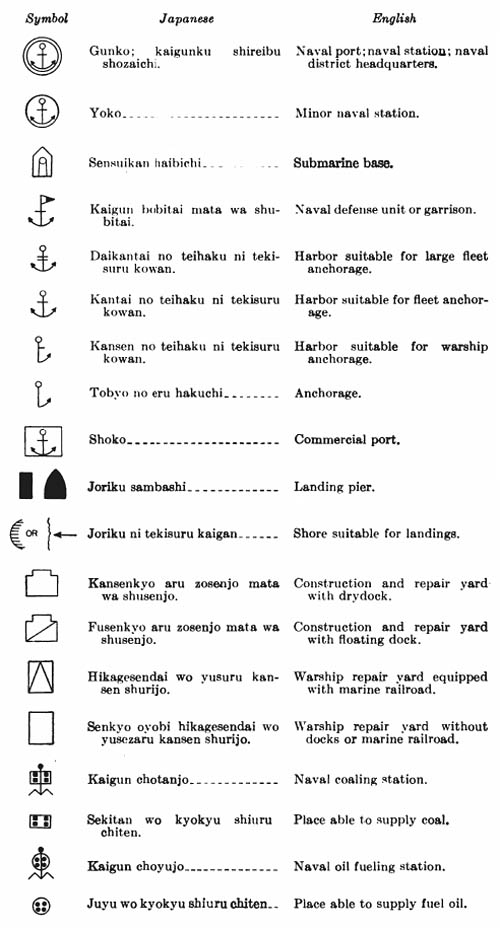

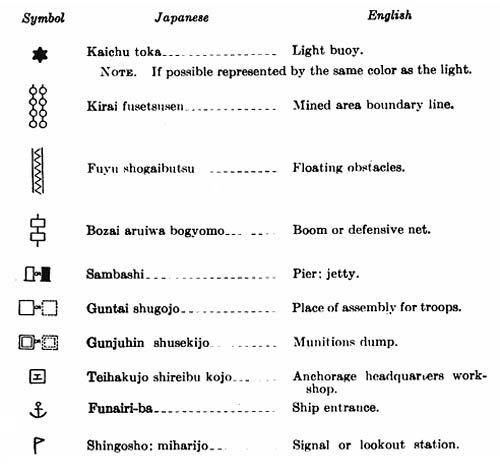

a. Bases, anchorages.

[Navy Signs: Bases, anchorages.]

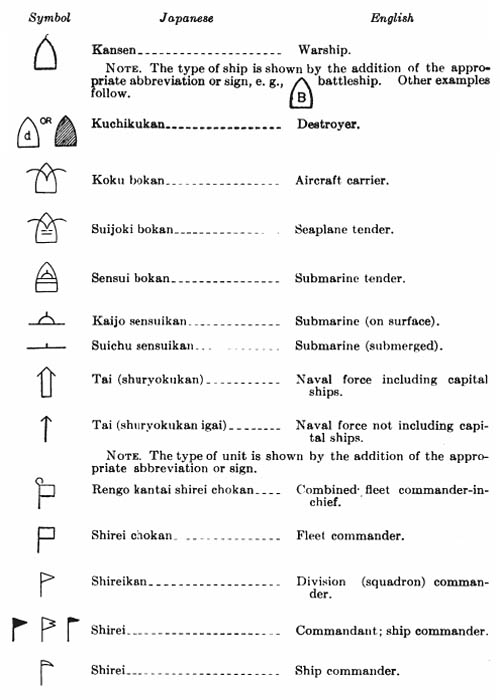

b. Ships, personnel.

[Navy Signs: Ships, personnel.]

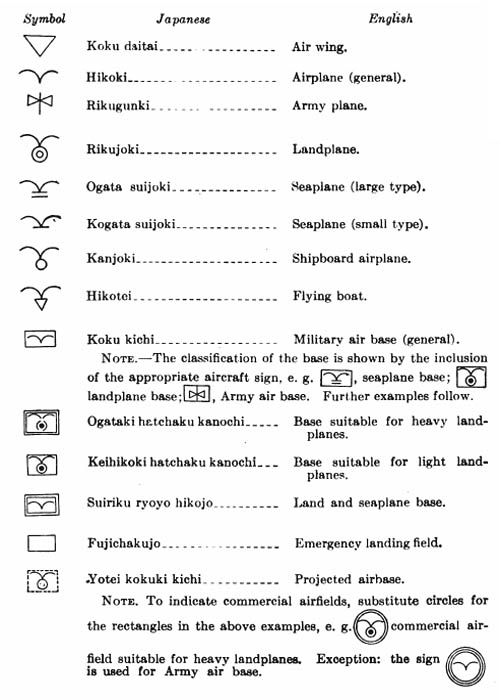

c. Air.

[Navy Signs: Air.]

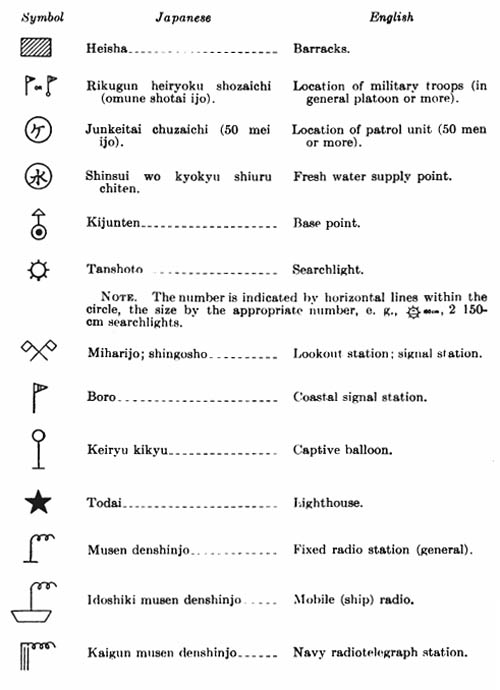

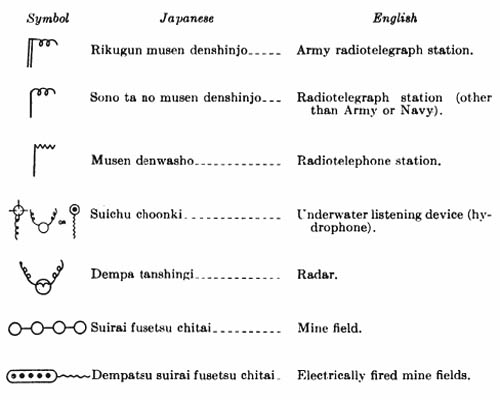

d. Fortifications, miscellaneous installations.

[Navy Signs: Fortifications, miscellaneous installations.]

[Navy Signs: Fortifications, miscellaneous installations.]

[Navy Signs: Fortifications, miscellaneous installations.]

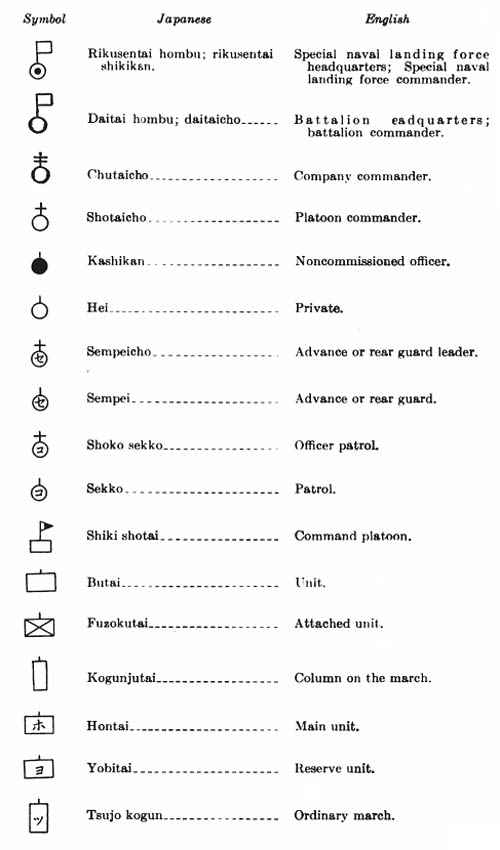

3. SPECIAL NAVAL LANDING FORCE SIGNS.

NOTE. The following signs have been compiled from various sources, and are not considered complete or necessarily standard for all special naval landing forces. Although Navy signs are used wherever appropriate (e.g., the basic sign for aircraft), most of the signs are identical or similar to the corresponding Army signs because the functions and equipment of naval landing forces resemble more closely those of the Army than of the Navy.

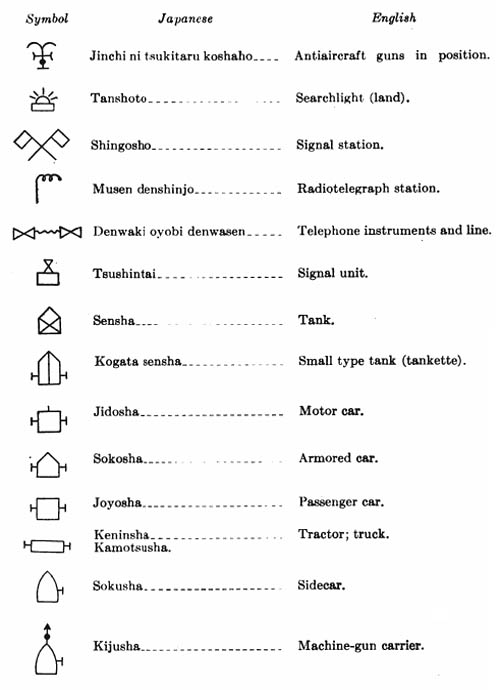

[Special Naval Landing Force Signs.]

[Special Naval Landing Force Signs.]

[Special Naval Landing Force Signs.]

[Special Naval Landing Force Signs.]

[Special Naval Landing Force Signs.]
