Chapter IX: Weapons

Section II: Infantry Weapons

1. PISTOLS, REVOLVERS, AND RIFLES. a. General. (1) All known Japanese rifles and carbines are of Arisaka design. Immediately after the Russo-Japanese War, Model 38 (1905) 6.5-mm Rifle was introduced and all subsequent rifles and carbines have adhered to this design. Later models have a folding monopod attached to the lower band. The design closely follows the Mauser and is simple and sturdy. The safety mechanism is an unusual feature.

(2) The only known Japanese military revolver is a very clumsy copy of a Smith and Wesson top-break revolver. This weapon was introduced in 1893.

(3) The first Japanese military magazine pistol was designed by General Nambu. Despite its superficial resemblance to the German Luger, the action of the Nambu pistol is unique. The original design was improved in the Model 14 (1925) pistol.

(4) The Model 94 (1934) pistol is a crude attempt to make a small pistol along general Browning lines.

b. Nambu 8-mm pistol. (1) General description. This is a semiautomatic, recoil-operated, magazine-fed hand weapon (fig. 167). It is equipped with a grip safety below the trigger guard.

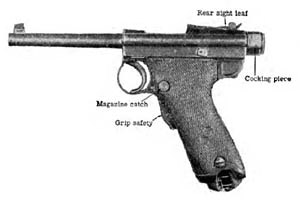

[Figure 167. Nambu 8-mm pistol.]
Figure 167. Nambu 8-mm pistol.

The markings [Nambu model marking] on the right side of the receiver read "Nambu model". In addition to the markings, the weapon is easily identified by the recoil-spring housing (a bulge on the left side of the receiver) and the adjustable rear sight. This is a leaf with an open V notch sliding on a ramp and is graduated from 100 to 500 meters. The weapon may be equipped with a wooden holster, also designed to be used as a shoulder stock when attached to the heel of the butt.

(2) Characteristics.

Caliber       8-mm (.315 inch).
Capacity of magazine8 rounds.
Weight (empty)31 ounces.
Muzzle velocity950 feet per second.

(3) Ammunition. Rimless ball cartridges are provided and are interchangeable in the model 14 and the model 94 pistols described on the following pages.

c. Model 14 (1925) 8-mm pistol. (1) General description. The model 14 (1925) 8-mm pistol is a semiautomatic, recoil-operated, magazine-fed hand weapon (fig. 168). It is a development of the Nambu 8-mm pistol. Markings [14th year model] on the left side of the receiver read "14th year model". The front sight is a blade type sight and the rear sight is a non-adjustable open V notch. The safety lever is moved to the forward position for "fire" and rearward for "safe." An unusually large trigger guard permits firing with a gloved hand.

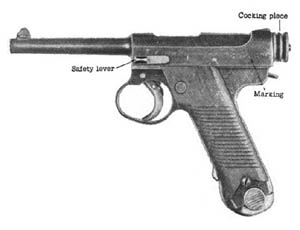

[Figure 168. Model 14 (1925) 8-mm pistol.]
Figure 168. Model 14 (1925) 8-mm pistol.

(2) Characteristics.

Caliber       8-mm (.315 inch).
Magazine capacity8 rounds.
Weight (empty)2 pounds.
Muzzle velocity950 feet per second.

(3) Ammunition. Rimless ball cartridges are provided and are interchangeable in the Nambu and the model 94 pistols.

d. Model 94 (1934) 8-mm pistol. (1) General description. The model 94 (1934) 8-mm pistol (fig. 169) is the latest design of semiautomatic pistol manufactured by the Japanese. It is believed to be inferior to the Nambu and the model 14 pistols because of poor design and manufacture. It is a semiautomatic, recoil-operated, magazine-fed hand weapon. Markings [Model 94] on the left side of the receiver read "Model 94". The front sight is a blade type sight and the rear sight is a non-adjustable open V notch type. A safety catch on the left rear of the receiver is moved upwards for "safe" and downwards for "fire".

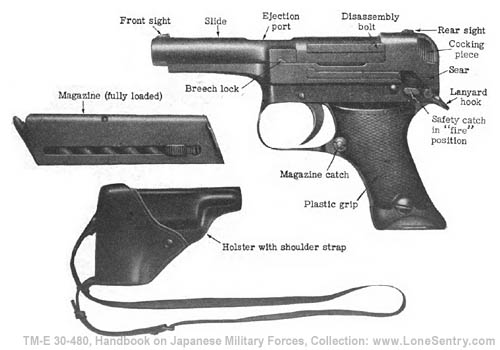

[Figure 169. Model 94 (1934) 8-mm pistol, showing holster and magazine.]
Figure 169. Model 94 (1934) 8-mm pistol, showing holster and magazine.

(2) Characteristics.

Caliber       8-mm (.315 inch).
Magazine capacity6 rounds.
Weight (empty)1 pound 11 ounces.
Muzzle velocity900 feet per second.

(3) Ammunition. Rimless ball cartridges are provided and are interchangeable in the Nambu and the model 14 pistols.

e. Model 26 (1893) 9-mm revolver. (1) General description. This revolver is solely a double action weapon with a cylinder having six chambers (fig. 170). It is a copy of the old Smith and Wesson top-break type. The weapon is equipped with blade type front sight and notch type rear sight. There is no positive safety device and owing to the extremely heavy trigger pull it has a comparatively low rate of fire. Moreover crude construction prohibits positive alignment of barrel and cylinder making its accuracy questionable. The markings [26th year model] on the right side of the frame read "26th year model."

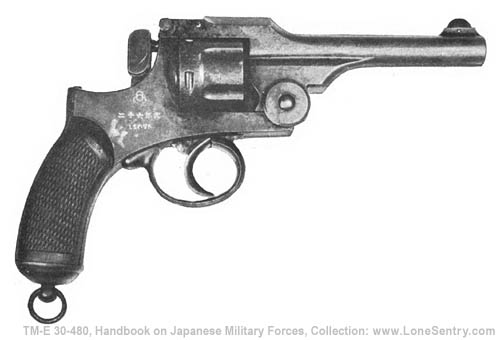

[Figure 170. Model 26 (1893) 9-mm revolver.]
Figure 170. Model 26 (1893) 9-mm revolver.

(2) Characteristics.

Caliber       9-mm (.354 inch).
Weight (empty)2 1/4 pounds.
Over-all length8.5 inches.

(3) Ammunition. This weapon fires 9-mm rimmed ball ammunition.

f. Model 38 (1905) 6.5-mm rifle. (1) General description. This rifle is a manually operated, clip loaded, magazine-fed weapon, with the Mauser type bolt action which is found in most military rifles. It is commonly referred to as the Arisaka rifle. The rifle is manufactured in 3 standard lengths as shown in figure 171; the longest of which is the standard infantry weapon. The shorter rifles are issued to other arms. The "safety" is locked by pressing the knob at the end of the bolt and turning it to the right. It has a blade type front sight and a leaf rear sight graduated from 100 to 2,400 meters. There is no windage or drift adjustment. The small caliber, long barrel, and medium muzzle velocity of this piece results in relatively no recoil and comparatively little muzzle flash. The markings [Model 38] on top of the receiver read "Model 38."

[Figure 171. Model 38 (1905) 6.5-mm rifles.]
Figure 171. Model 38 (1905) 6.5-mm rifles.

(2) Characteristics.

Caliber       6.5-mm (0.256 inch).
Muzzle velocity2,400 feet per second.
Magazine capacity5 rounds.

(3) Ammunition. The cartridges are semirimmed. Ball ammunition and tracer ammunition have been recovered.

g. Model 44 (1911) cavalry carbine. (1) General description. This carbine (fig. 172) is substantially the same as the model 38 (1905) short rifle. The action, operation, and sights are similar on all Arisaka rifles. This model, however, has a permanently attached spike type bayonet, that folds under and rests in a slot in the stock while being carried. This rifle has a blade front sight and a leaf rear sight graduated from 300 to 2000 meters. There is no windage or drift adjustment.

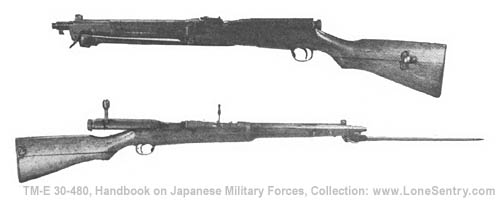

[Figure 172. Model 44 (1911) 6.5-mm cavalry carbine (showing bayonet folded and open).]
Figure 172. Model 44 (1911) 6.5-mm cavalry carbine (showing bayonet folded and open).

(2) Characteristics.

Caliber       6.5-mm (0.256 inch).
Length over-all (bayonet folded)38 1/4 inches.
Weight8.75 pounds.
Muzzle velocity2,400 feet per second.
Magazine capacity5 rounds.

(3) Ammunition. The weapon uses the same ammunition as the model 38 rifle, and the cartridges are semirimmed. Both ball and tracer ammunition have been recovered.

h. Model 99 (1939) 7.7-mm rifle. (1) General description. The Japanese are replacing their 6.5-mm weapons with this shorter, heavier caliber weapon (fig. 173). This rifle is an improved version of model 38 (1905) Arisaka rifle. The rifle has a blade front sight and a leaf rear sight graduated from 300 to 1500 meters. Modifications, other than the larger caliber which also help to identify this piece, are as follows: Monopod under fore end; antiaircraft sight arms attached to rear sight leaf; magazine floor plate hinged to forward part of trigger guard; sling swivels attached to side instead of under part of rifle. The markings [Model 99] on the top of the receiver read "Model 99." Reports have been received that a short model (38 inches overall) is being issued to service troops.

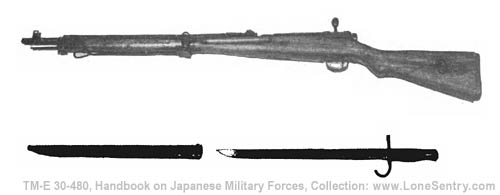

[Figure 173. Model 99 (1939) 7.7-mm rifle and bayonet.]
Figure 173. Model 99 (1939) 7.7-mm rifle and bayonet.

(2) Characteristics.

Caliber       7.7-mm (0.303 inch).
Length over-all (without bayonet)44 inches.
Muzzle velocity2,300 feet per second.
Weight8.8 pounds.

(3) Ammunition. This is supplied in 5 round clips, 3 clips to a package. It is a rimless type supplied in ball, tracer, and armor piercing varieties, and has standard markings. This ammunition can be used in the 7.7-mm model 92 (1932) machine gun, but the model 92 ammunition is semirimmed and cannot be used in the rifle.

i. Sniper's rifle. (1) General description. This particular piece of equipment is found in two models, model 97 (1937) 6.5-mm and model 99 (1939) 7.7-mm (fig. 174). The two rifles are the same length as the long model 38 (1905) 6.5-mm and can be identified by the fact that, in addition to standard sights, the sniper's model has a telescope mounted on the left of the receiver, a turned down bolt handle, and a monopod under fore end. It is believed that these rifles are manufactured more carefully than the standard rifles.

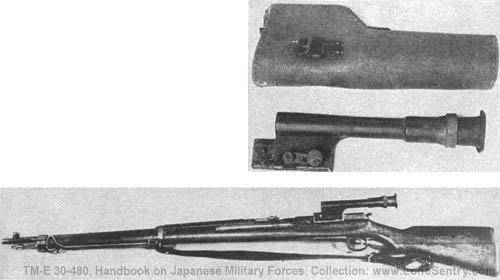

[Figure 174. Model 97 (1937) 6.5-mm Sniper's Rifle (with telescope and carrying case).]
Figure 174. Model 97 (1937) 6.5-mm Sniper's Rifle (with telescope and carrying case).

(2) Characteristics.

Model 97 caliber       6.5-mm (0.256 inch).
Model 99 caliber7.7-mm (0.303 inch).
Weight (with scope; both models)9 3/4 pounds.
Length over-all (both models)50 1/4 inches.
Sights:
     FrontBlade type.
     RearSliding leaf, graduated from 300 to 1,500 meters.
Telescope sight:
     TypeFixed focus.
     Magnification2.5x.
     Field of vision10°.
     Weight17 ounces.

(3) Ammunition. The model 97 (1937) 6.5-mm fires standard 6.5-mm semirimmed ammunition. Model 99 (1939) 7.7-mm fires standard 7.7-mm rimless ammunition.

j. Rifle grenade launchers (dischargers). (1) Spigot type launcher. This attachment (fig. 175) is placed over the rifle muzzle and locked into place, behind the front sight. Two types of grenades are known to be fired from this launcher. Both types are projected by a special cartridge (fitted with a wooden bullet) which is normally packed in the grenade fin assembly.

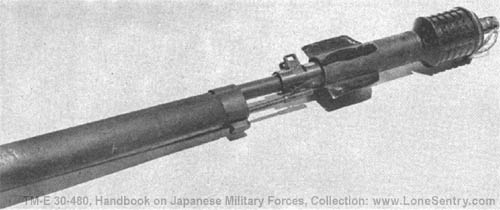

[Figure 175(a). Spigot type grenade launcher and ammunition (at the top is shown the fragmentation grenade in position for firing, at bottom, the smoke grenade and launcher).]

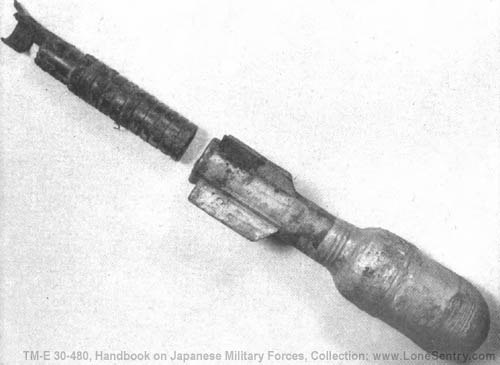

[Figure 175(b). Spigot type grenade launcher and ammunition (at the top is shown the fragmentation grenade in position for firing, at bottom, the smoke grenade and launcher).]
Figure 175. Spigot type grenade launcher and ammunition (at the top is shown the fragmentation grenade in position for firing, at bottom, the smoke grenade and launcher).

(a) Fragmentation grenade Model 91 (1931). This grenade has been adopted for use as a rifle grenade by replacing the propellant charge normally found screwed into the base of this grenade, with a fin assembly. Prior to firing, the safety pin must be removed from the fuze. When projected, the fuze action will be started by the shock of the explosion upon the base of the grenade. Grenade will detonate in 7-8 seconds (approx.) after firing.

(b) Rifle smoke grenade. The rifle smoke grenade weighs 1.3 pounds and is painted silver. It contains approximately 0.6 pounds of an HC white smoke mixture. No fuze is used, the action being started by the flash of the propelling charge.

(2) Rifled type launcher. This launcher (fig. 176) is designed for projecting the hollow charge high explosive AP grenade. When fired, the action of the discharger cup rifling on the lugs (prerifled rotating band) of the grenade forces the projectile to rotate, giving stability in flight. It is reported that this grenade is projected by a special cartridge fitted with a wooden bullet.

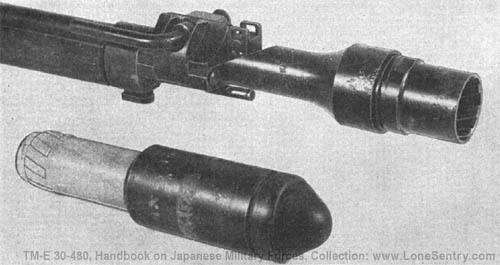

[Figure 176. Rifled-type grenade launcher with armor piercing (hollow charge) rifle grenade.]
Figure 176. Rifled-type grenade launcher with armor piercing (hollow charge) rifle grenade.

(3) Cup type launcher Model 100. This launcher is used for projecting the Model 99 (1939) fragmentation grenade. The launcher is attached to the muzzle of the rifle, and the grenade, with safety pin removed, placed inside the cup. Standard ball ammunition is used for projecting the grenade, which has a range of approximately 100 yards when using any standard Japanese rifle. The grenade time fuze is started when the weapon is fired, detonating in approximately 4-5 seconds.

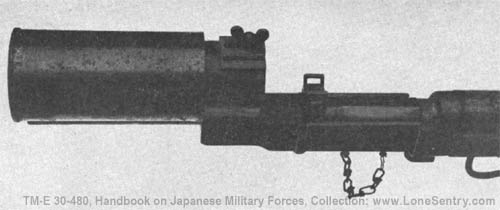

[Figure 177. Cup type launcher Model 100 fitted on muzzle of rifle.]
Figure 177. Cup type launcher Model 100 fitted on muzzle of rifle.
