ENEMY GROUND OBSERVATION

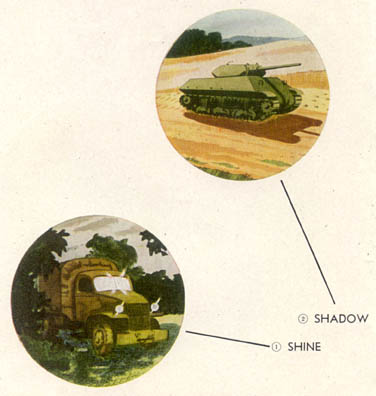

[FIGURE 3.—Vehicles are revealed to both ground and aerial observation by the same factors. (Shine and Shadow)]

FIGURE 3.—Vehicles are revealed to both ground and aerial observation by the same factors. However, because there is a tremendous difference in the appearance of a vehicle when seen from the ground and from the air, different measures must be taken against each kind of observation.

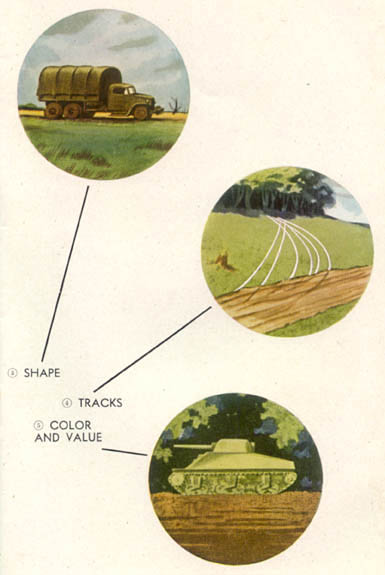

[Shape, Tracks, Color and Value: Ground Observation]
