TM E9-369A: German 88-mm Antiaircraft Gun Materiel
Technical Manual, War Department, June 29, 1943
[DISCLAIMER: The following text is taken from a WWII U.S. War Department Technical Manual. As with all manuals, the text may be incomplete or inaccurate. No attempt has been made to update or correct the contents of the original technical manual. Any views or opinions expressed do not necessarily represent those of the website.]


Scope  ..............................................................................................
Characteristics  ..................................................................................
Data  .................................................................................................


a. This manual is published for the information and guidance of the using arms and services.

b. There is included as much technical information required for identification, use, and care of the German 88-mm antiaircraft gun as can be ascertained from printed matter and the materiel on hand. Corrections and additions to this manual will be published as the information becomes available.

c. In all cases where the nature of the repair, modification, or adjustment is beyond the scope or facilities of the unit or beyond the scope of this manual, the responsible ordnance service should be informed so that proper instructions may be issued.


a. The mount is a circular pedestal antiaircraft type suspended from two bogies when in traveling position. The mount is equipped with a data transmission indicator for antiaircraft fire. There are also provisions for installing a direct laying sight for antitank fire and a dial sight for indirect fire. A hand driven fuze setter is fitted to the left side of the top carriage. The traversing and elevating mechanism data transmission indicators and direct laying sight are on the right side.

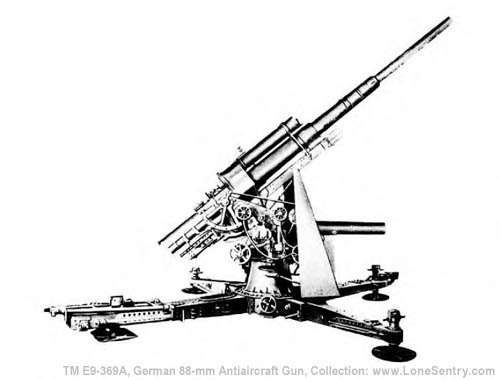

[Figure 1. German 88-mm Antiaircraft Gun -- Firing Position]
Figure 1 — German 88-mm Antiaircraft Gun — Firing Position

b. Normally, the bottom carriage is in contact with the ground during firing and is stabilized by outriggers. There are four leveling jacks, one at each extremity of the outriggers for leveling the bottom carriage. The top carriage is leveled by two handwheels located 45 degrees from either side of the center line of the front outrigger on the bottom carriage. The leveling system has a range of 9 degrees. The front of the mount is protected by a flat shield of armor plate.

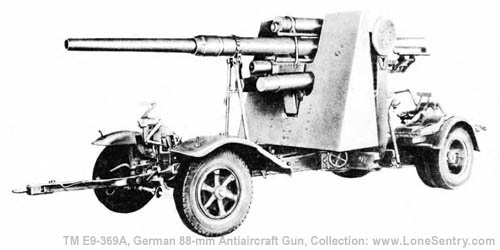

[Figure 2. German 88-mm Antiaircraft Gun -- Traveling Position]
Figure 2 — German 88-mm Antiaircraft Gun — Traveling Position

3. DATA.

a. Gun.

Type          Tube and loose 3 section liner
Total weight2,947 lb
Weight of removable components:
     Breech ring505.5 lb
     Outer tube785 lb
     Inner tube805.5 lb
     Liner (muzzle section)600 lb
     Liner (center section)199 lb
     Liner (breech section)58 lb
     Retaining rings34 lb
Over-all length of tube185 in. (470 cm)
Over-all length of gun and tube194.1 in. (493.8 cm)
Length in calibers56
Distance from center line of trunnions to breech face 6.5 in.
Travel of projectile in bore157.4 in. (400 cm)
Volume of chamber226 cu in.
Rated maximum powder pressure33,000 lb per sq in. (approx.)
Muzzle velocity2,690 ft per sec
Maximum range:
     Horizontal16,200 yd
     Vertical39,000 ft
     Maximum effective ceiling25,000 ft (at 70-deg elevation)
     Length157.4 in. (400 cm)
     TwistIncreasing 1 turn in 45 calibers to 1 turn in 30 calibers
     Number of grooves32
     Depth of grooves0.0394 in. (1 mm)
     Width of grooves0.1969 in. (5 mm)
     Width of lands0.1181 in. (3 mm)
Type of breech mechanismSemiautomatic horizontal sliding block
Rate of fire15 rounds per min (practical rate at a mechanized target)
 20 rounds per min (practical rate at an aerial target)

b. Recoil Mechanism.

Type          Independent liquid and hydropneumatic
Total weight524 lb
Weight of recuperator cylinder285 lb
Weight of recoil cylinder239 lb
Weight of recoiling parts in recoil mechanism108.5 lb
Total weight of recoiling parts (with gun and tube) 3,159 lb
Type of recoilControl rod type with secondary control rod type regulating counterrecoil
Normal recoil:
     0-degree elevation41.5 in. (105 cm)
     25-degree elevation33.46 in. (85 cm)
     Maximum elevation27.75 in. (70 cm)
Capacity of recoil cylinder2.5 gal
Capacity of recuperator cylinder4.5 gal

c. Mount.

Weight (less cannon and recoil mechanism)          8,404 lb
Maximum elevation85 deg
Maximum depressionminus 3 deg
Traverse360 deg
Loading anglesAll angles
Height of trunnion above ground (firing position)5.2 ft
Height of working platform (firing)0.8 ft
Height of trunnion above working platform4.4 ft
LevelingPivots located 45 deg from either side of center line of front outrigger (total of 9 deg each)
Number of turns of handwheel to elevate from 0 to 85 degrees:
     High gear42.5
     Low gear85
Elevation for one turn of elevating handwheel:
     High gear2 deg (35.4 mils)
     Low gear1 deg (17.7 mils)
Number of turns of handwheel to traverse 360 degrees:
     High gear100
     Low gear200
Traverse for one turn of handwheel:
     High gear3.6 deg (63.8 mils)
     Low gear1.8 deg (31.9 mils)
Effort required at elevating handwheel (in.-lb):
     To Elevate      High Gear Low Gear
0 deg              55            110
20 deg    110  160
40 deg    192  110
60 deg    214  55
80 deg    209  50
To Depress High Gear Low Gear
0 deg              275            220
20 deg    193  28
40 deg    138  50
60 deg    110  77
80 deg    165  77
Effort required at traversing handwheel (in.-lb):
To Traverse Left High Gear Low Gear
0 deg              55            39
90 deg    28  6
180 deg    11  11
270 deg    22  17
To Traverse Right High Gear Low Gear
0 deg    10  6
90 deg    44  17
180 deg    61  44
270 deg    20  17
Time to elevate from minus 3 to plus 85 degrees:
     High gear15.02 sec
     Low gear 25.90 sec
Time to depress from plus 85 to minus 3 degrees:
     High gear21.44 sec
     Low gear 34.90 sec
Time to traverse 360 degrees:
     High gear33.90 sec
     Low gear 69.79 sec
Over-all dimensions in firing position:
     Length19 ft
     Height6.9 ft
     Width16.87 ft w/outriggers
Over-all dimensions in traveling position:
     Length25.5 ft w/drawbar
     Height7.9 ft
     Width (front)7.20 ft
     Width (rear)7.60 ft
Length of outriggers4.8 ft
Number of bogies2
Type of bogiesSingle axle. Single wheels on front; dual wheels on rear
Weight of front bogie1,825 lb
Weight of rear bogie2,645 lb
Pneumatic tire size32 in. x 6½ in. (6½ extra 20); also marked 7:50 x 20
Wheel base13.75 ft
Type of brakesVacuum air brakes on all wheels; hand-operated parking brakes on rear wheels also
Type and number of jacks4 jacks integral with mount for leveling bottom carriage; one on each end of outriggers and carriage
Leveling4.5 deg leveling either side of horizontal
Road clearance1.14 ft
Tread (front)5.8 ft
Tread (rear)6 ft
Height of axis of bore above ground (firing)5 ft
Time to change from traveling to firing position2½ min with 6-man crew (approx.)
Time to change from firing to traveling position3½ min with 6-man crew (approx.)
Weight of entire carriage16,325 lb
Rear wheel reactions9,830 lb
Front wheel reactions6,510 lb
Type of equilibratorsSpring type with built-in spring compressors

d. Essential Translations.

Schnell          Quick
Normal Normal
LinksgewindeLeft-hand thread
